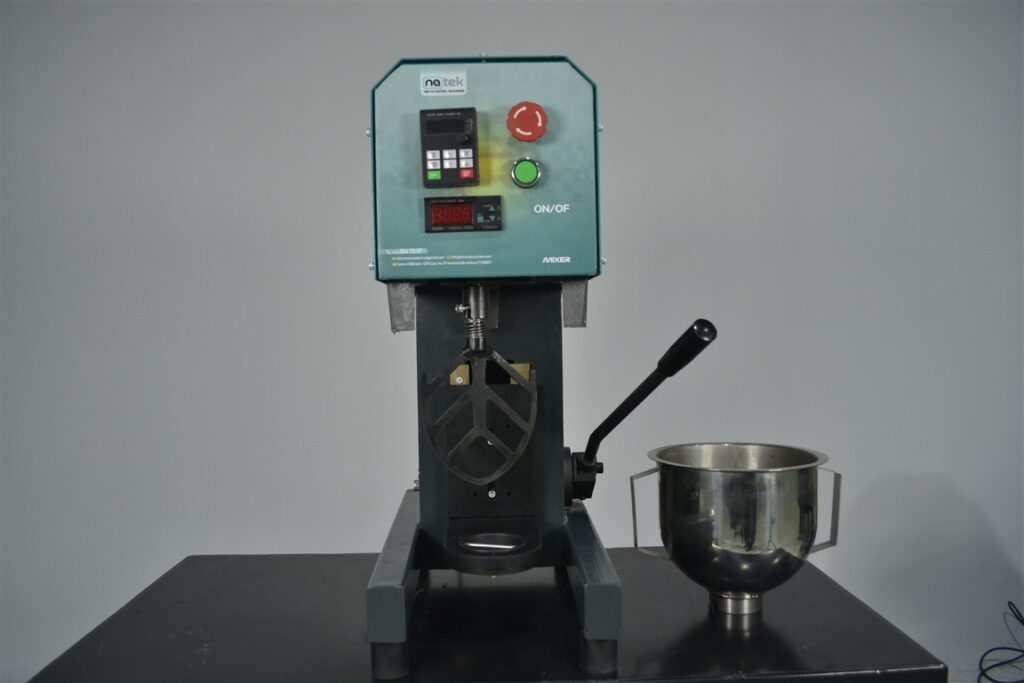

Automatic Mortar Mixer
The mixer has been designed to mix mortars and cement pastes primarily to the requirements of standards.
The mixing paddle has a planetary motion and is driven by a motor with a microprocessor based speed and preset programs to meet all listed EN and ASTM standards, custom designed programs or manual mode.
The mode button is used for the fast selection of different programs.
The mixing paddle revolves at a rate of 140 rpm with a planetary motion of 62 rpm in low speed. In high speed, the paddle revolves at the rate of 285 rpm with a planetary motion of 125 rpm.
An automatic sand dispenser is supplied with the machine and the sand is automatically discharged.
Custom design allows 6 programs to be set by the operator, where the motor speed, sand dispenser position and duration of the mix can be set.
The Automatic Programmable Mortar Mixer is supplied complete with 5lt capacity bowl and the beater.
Technical Specifications :
| Product Code | Product Name | Dimensions (cm) | Weight (kg) | Power Supply |
|---|---|---|---|---|
| NMM/7125 | Automatic Mortal Mixer | 35x50x75 | 55 | 220 V, 50-60 Hz, 1 ph |
Spare Parts & Accessories :
| Product Code | Product Name |
|---|---|
| NMM-7126/1 | Bowl, 5 lt |
| NMM-7126/2 | Beater |
