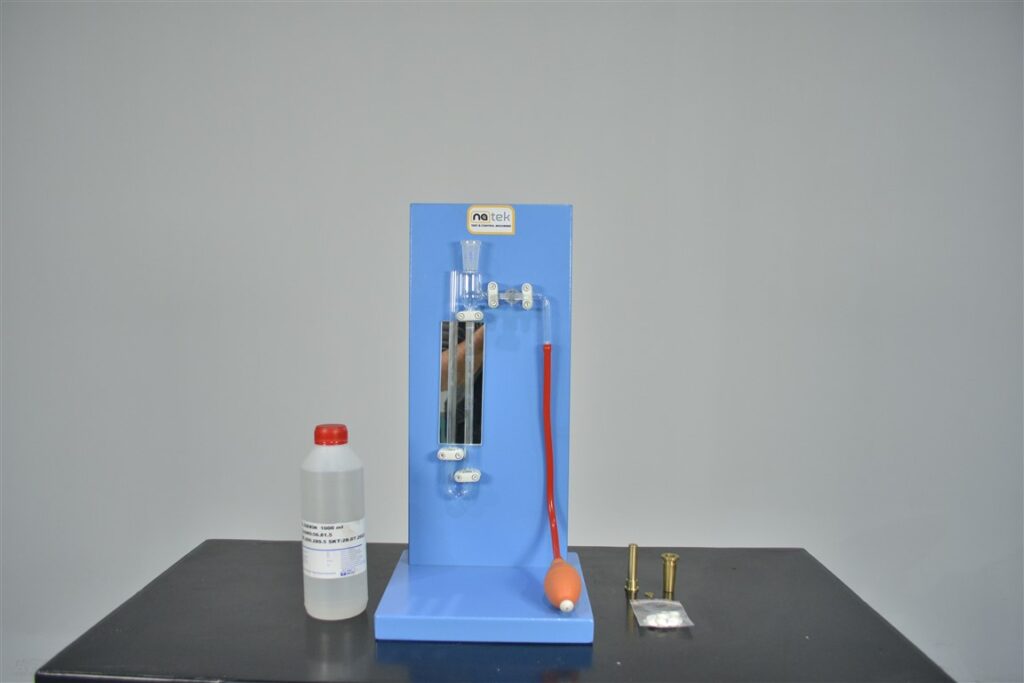

Blaine Air Permeability Apparatus
Used to determine the fineness of Portland cement in terms of the specific surface expressed as total surface area in square centimeters per gram of cement.
Supplied complete with a U-Tube Glass Manometer with valve which is fitted to the steel stand, Stainless steel Test Cell with Perforated Disc and Plunger, 250 ml Manometric Liquid, Rubber Aspirator Bulb, 100 pieces Filter Paper Discs and 100 mm Plastic Funnel.
Calibration Sand should be ordered separately.
Technical Specifications :
| Product Code | Product Name | Dimensions (cm) | Weight (kg) |
|---|---|---|---|
| NBA-7005 | Blaine Air Permeability Apparatus | 30x20x55 | 7 |
Spare Parts & Accessories :
| Product Code | Product Name |
|---|---|
| NBA-7006/1 | U-Tube Glass Manometer |
| NBA-7006/2 | Cell with Perforated Disc and Plunger |
| NBA-7006/3 | Manometric Liquid, 250 ml |
| NBA-7006/4 | Rubber Aspirator Blub |
| NBA-7006/5 | Filter Paper, Pack of 100 |
| NBA-7006/6 | Filter Paper, Pack of 1000 |
| NBA-7006/7 | Calibration Sand, 2x100 ml |
| NBA-7007 | Plastic Funnel, 100 mm |
