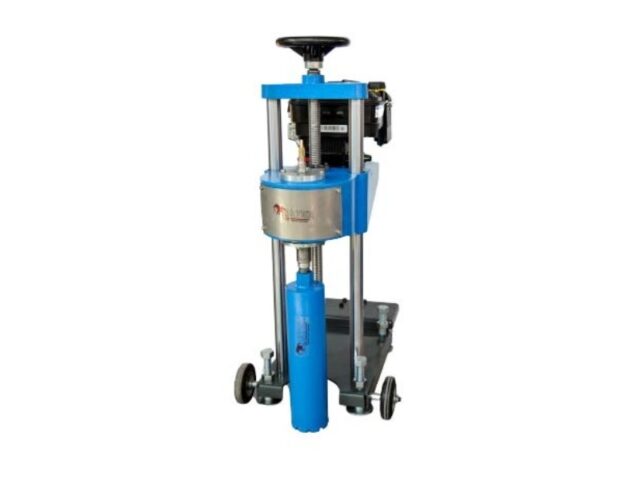

Core Drilling Machine
Core Drilling Machine
For shock-free drilling in concrete, natural stone and asphalt with a diameter range from 50 to 255 mm. The machine is equipped with 2 load speeds. Electronics – soft start, current limitation, thermal overload protection. Mechanical safety clutch. 2-speed (460/840 rpm) oil bath gearbox – optimal speed adjustment in the entire drill range. Feed lever change without any tool (right/ left side). Feed lever – drilling in tight areas. Quick-change plate – motor/rig.
Water Pump is 15 lt capacity. It is supplied with 3 m hose. Water Pump should be ordered separately.
Technical Specifications :
| Product Code | Product Name | Power İnput | Drilling dia. (mm) | Rated Speed (rpm) | Weight (kg) | Power Supply |
|---|---|---|---|---|---|---|
| NCD-6052 | Core Drilling Machine | 2600 W | 50-255 | 460/840 | 25,2 | 220 V,50-60 Hz,1 ph |
Spare Parts & Accessories :
| Product Code | Product Name | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| NCD-6046 | Core Bit | Ø50x400 | 2 |
| NCD-6047 | Core Bit | Ø54,74x400 | 2,25 |
| NCD-6048 | Core Bit | Ø75x400 | 2,5 |
| NCD-6049 | Core Bit | Ø100x400 | 3 |
| NCD-6050 | Core Bit | Ø150x400 | 5 |
| NCD-6051 | Core Bit | Ø200x400 | 8 |
| NCD-6051/1 | Water Pump | - | - |
