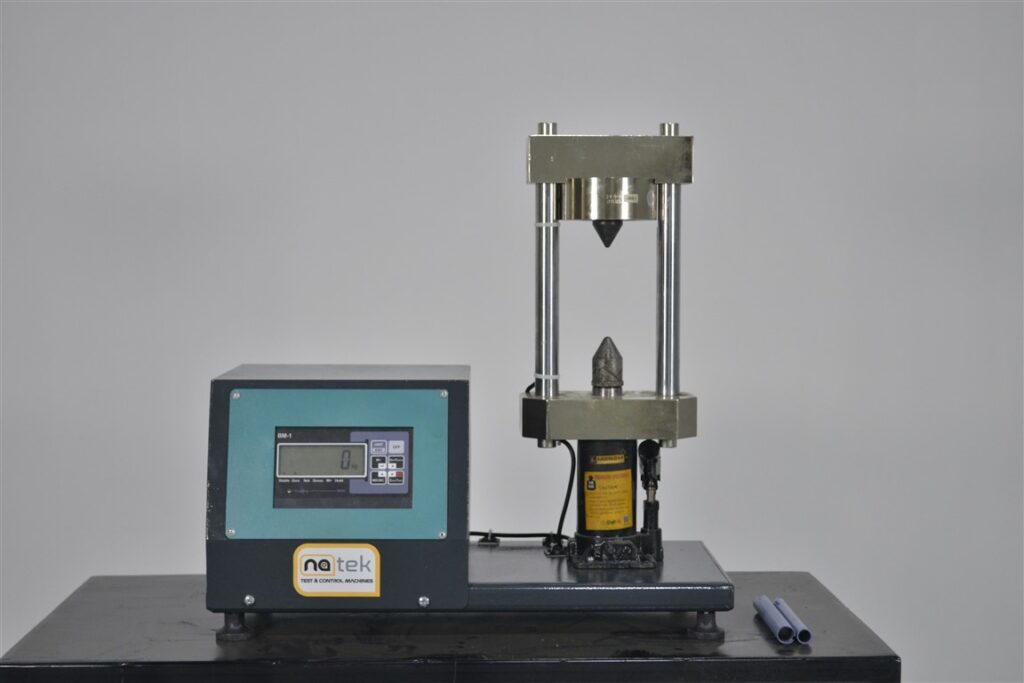

Digital Point Load Tester (Rock Strength Index)
Used to determine the strength values of a rock specimen both in the field and in the laboratory.
It consist of a load frame for applying loads up to 50 kN, on which a manual hydraulic jack is mounted.
The instrument accepts core specimens up to 4” (101.6 mm) diameter which are loaded by two cone shaped points. A graduated scale indicates the distance between the conical points.
Complete with Manuel Hydraulic Jack, Digital Indicator, Safety Mask and Wooden Carrying Case.
Technical Specifications :
| Product Code | Product Name | Dimensions (cm) | Weight (kg) |
|---|---|---|---|
| NDPL-4011 | Digital Point Load Tester | 40x53x72 | 25 |
Spare Parts & Accessories :
| Product Code | Product Name |
|---|---|
| NDPL-4010 | Manuel Hydraulic Jack |
| NDPL-4010/2 | Digital Indicator |
| NDPL-4010/3 | Safety Mask |
| NDPL-4010/4 | Wooden Carrying Case |
