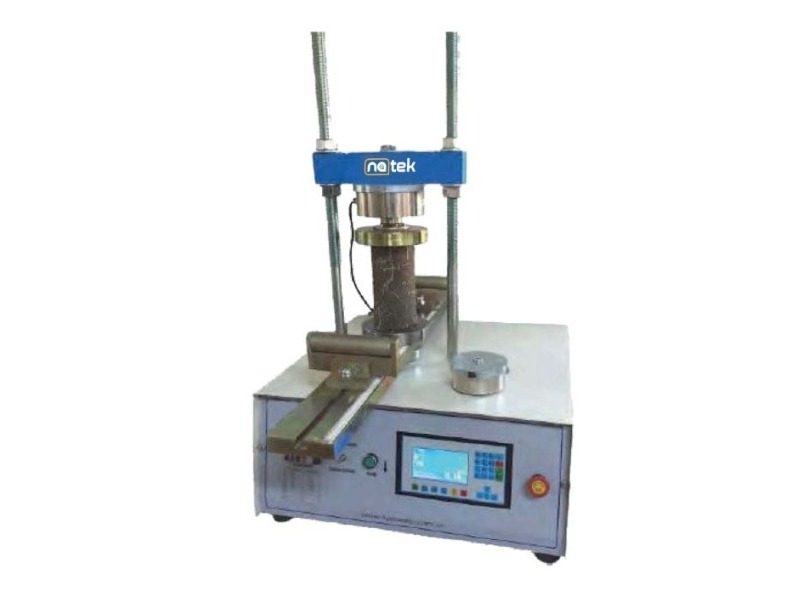

Electromechanical Flexural Compression Testing Machine
Electromechanical Flexural Compression Testing Machine has 100 kN capacity.
The device is consist of 2 rigid columns, a cast iron base with gear box inside and a steel bridge to hold the Load cell and accessories.
The device is supplied with a special moving upper platen and 100 kN Load cell for compression tests, beam testing apparatus and 50 kN Load cell for flexure tests. The Digital Readout Unit and Software is also supplied standard with the device.
The moving of the piston is limited with 2 switches located at up and lower end of the piston.
100 kN and 50 kN Load cell calibration data can be saved independently by the Digital Readout Unit. The load vs time graph can be seen from the LCD screen during the test. The device can be connected to a computer by RS-232 serial port and different types of user and sample data can be stored.
The device can be run from the device and after failure the test data can be stored by the computer.
The pace rate can be adjusted from the panel located on the front of the device. The pace rate can be adjusted as 0,1/0,2/0,4/1,0/2,0 mm/min.
Technical Specifications :
| Produc Code | Produc Name | Dimensions (cm) | Weight (kg) | Power Supply |
|---|---|---|---|---|
| NEF-5233 | Electomechanical Flexural-Compression Testing Machine | 64x65x90 | 120 | 220 V, 50-60 Hz, 1 ph |
Spare Parts & Accessories :
| Product Code | Product Name | Power Supply |
|---|---|---|
| NEF-5234/1 | Electromechanical Flexural-Compression Testing Frame | - |
| NEF-5235 | Computer & Printer | 220 V, 50-60 Hz, 1 ph |
| NEF-5236/1 | Usb to com port Converter | - |
| NEF-5237 | Load Cell, 50 kN capacity | - |
| NEF-5238 | Load Cell, 100 kN capacity | - |
| NEF-5239 | Digital Readout Unit | 220 V, 50-60 Hz, 1 ph |
| NEF-5240/1 | Software | - |
