Particle Size Analysis Of Solis
This equipment is used to determine the quantitative size distribution of very fine particle in soils such as clay and silt.
Two models are available.

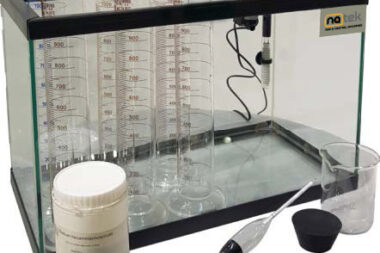

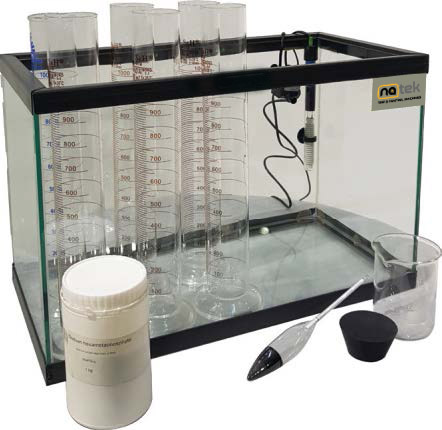

Hydrometer Test Set is Supplied with Hydrometer Water Bath, Circulation Pump, Heater, High Speed Stirrer, 6 x 1000 ml Sedimentation Cylinder, 0,995 to 1,038 g/ml range 151 H Hydrometer, 1 kg Sodium Hexametaphosphate and 600 ml Beaker.
Digital Hydrometer Test Set is Supplied with Digital Hydrometer Water Bath, Circulation Pump, Heater, High Speed Stirrer, 6 x 1000 ml Sedimentation Cylinder, 0,995 to 1,038 g/ml range 151 H Hydrometer, 1 kg Sodium Hexametaphosphate and 600 ml Beaker.

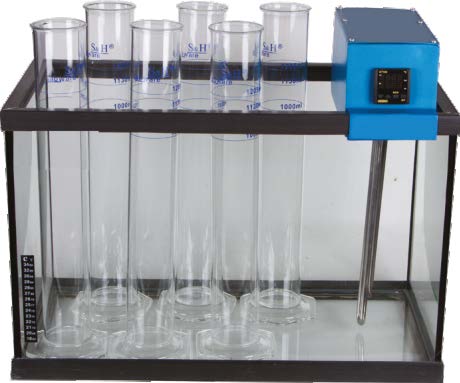

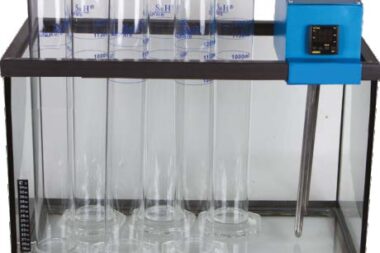

The Hydrometer Water Bath, circulation unit, ambient to 35°C working temperature, 50 L capacity tank with 8 pieces Sedimentation cylinder capacity. The Water Bath is available in two models one with Analogue and the other one with Digital Indicator.
High Speed Stirrer operates at over 10,000 rpm, includes dispersion cup, stirring paddle, automatic switch-on by positioning bowl.
-5 to 60 g/l range 152 H Hydrometer should be ordered separately.
Technical Specifications :
| Product Code | Product Name | Dimensions (cm) | Weight (kg) | Power Supply |
|---|---|---|---|---|
| NPS-8033 | Hydrometer Test Set | 35x65x45 | 25 | 220 V, 50-60 Hz, 1 ph |
| NPS-8034 | Digital Hydrometer Test Set | 35x65x45 | 26 | 220 V, 50-60 Hz, 1 ph |
