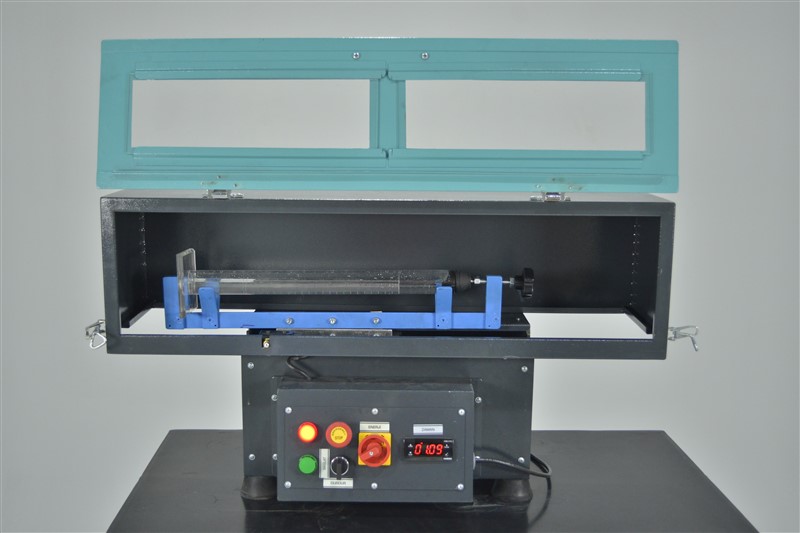

Sand Equivalent Shakers
The unit provides a constant uniform shaking with automatic cycle test. Provides shaking action at the specified rate and stroke.
Supplied complete with built in timer that stops the shaker at the end of the test.
When opening cabinet’s door during shaker working, a micro switch automatically stops the machine.
| Standard | EN | ASTM |
|---|---|---|
| Horizontal Movement Cycle | 200mm ±10mm 90±3/30 sec. | 203,2mm ±1mm 175±2/min. |
Technical Specifications :
| Product Code | Product Name | Dimensions (cm) | Weight (kg) | Power Supply |
|---|---|---|---|---|
| NSQS-3058 | Sand Equivalent Shakers | 22x60x32 | 25 | 220 V, 50 Hz, 1 ph |
| NSQS-3058/60Hz | Sand Equivalent Shakers | 22x60x32 | 25 | 220 V, 60 Hz, 1 ph |
| NSQS-3059 | Sand Equivalent Shakers with Security Cabinet | 37x94x47 | 36 | 220 V, 50 Hz, 1 ph |
| NSQS-3059/60Hz | Sand Equivalent Shakers with Security Cabinet | 37x97x47 | 36 | 220 V, 60 Hz, 1 ph |
