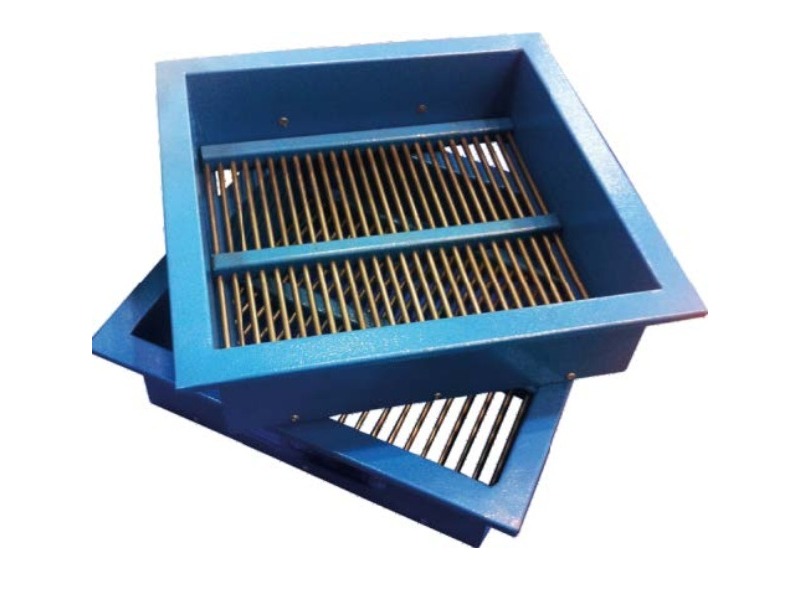

Grid Sieves
Used to determine the flakiness index of the aggregates.
Consists of electrostatic painted frame and 5 mm diameter stainless steel bars.
50 mm aperture Sieve is not supplied with Complete Set and should be ordered separately.
Technical Specifications :
| Product Code | Product Name | Aperture (mm) | Dimensions (cm) | Weight (kg) |
|---|---|---|---|---|
| NGS-3022/1 | Grid Sieves | 2,5 | 34x32x8 | 4 |
| NGS-3022/2 | Grid Sieves | 3,15 | 34x32x8 | 4 |
| NGS-3022/3 | Grid Sieves | 4 | 34x32x8 | 4 |
| NGS-3022/4 | Grid Sieves | 5 | 34x32x8 | 4 |
| NGS-3022/5 | Grid Sieves | 6,3 | 34x32x8 | 4 |
| NGS-3022/6 | Grid Sieves | 8 | 34x32x8 | 4 |
| NGS-3022/7 | Grid Sieves | 10 | 34x32x8 | 4 |
| NGS-3022/8 | Grid Sieves | 12,5 | 34x32x8 | 4 |
| NGS-3022/9 | Grid Sieves | 16 | 34x32x8 | 4 |
| NGS-3022/10 | Grid Sieves | 20 | 34x32x8 | 4 |
| NGS-3022/11 | Grid Sieves | 25 | 34x32x8 | 4 |
| NGS-3022/12 | Grid Sieves | 31,5 | 34x32x8 | 4 |
| NGS-3022/13 | Grid Sieves | 40 | 34x32x8 | 4 |
| NGS-3022/14 | Grid Sieves | 50 | 34x32x8 | 4 |
| NGS-3022/S | Grid Sieve Set | Complete Set | 34x32x104 | 52 |
| Product Code | Product Name | Aperture (mm) | Dimensions (cm) | Weight (kg) |
|---|---|---|---|---|
| NGS-2086/1 | Grid Sieves | 2,5 | 34x32x8 | 4 |
| NGS-2086/2 | Grid Sieves | 3,15 | 34x32x8 | 4 |
| NGS-2086/3 | Grid Sieves | 4 | 34x32x8 | 4 |
| NGS-2086/4 | Grid Sieves | 5 | 34x32x8 | 4 |
| NGS-2086/5 | Grid Sieves | 6,3 | 34x32x8 | 4 |
| NGS-2086/6 | Grid Sieves | 8 | 34x32x8 | 4 |
| NGS-2086/7 | Grid Sieves | 10 | 34x32x8 | 4 |
| NGS-2086/8 | Grid Sieves | 12,5 | 34x32x8 | 4 |
| NGS-2086/9 | Grid Sieves | 16 | 34x32x8 | 4 |
| NGS-2086/10 | Grid Sieves | 20 | 34x32x8 | 4 |
| NGS-2086/11 | Grid Sieves | 25 | 34x32x8 | 4 |
| NGS-2086/12 | Grid Sieves | 31,5 | 34x32x8 | 4 |
| NGS-2086/13 | Grid Sieves | 40 | 34x32x8 | 4 |
| NGS-2086/14 | Grid Sieves | 50 | 34x32x8 | 4 |
| NGS-2086/S | Grid Sieves Set | Comlete Set | 34x32x104 | 52 |
