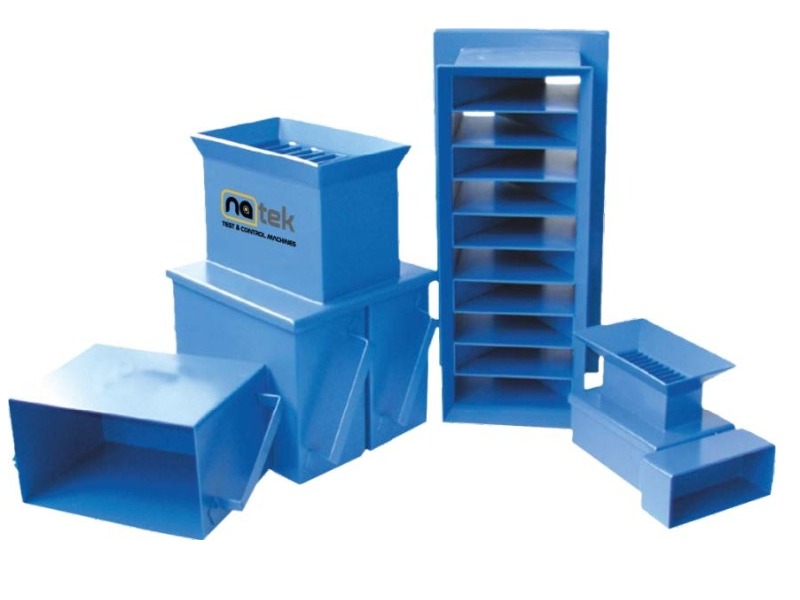

Sample Splitters (Riffle Boxes)
Sample Splitters (Riffle Boxes)
Used for the precise division into two representative portions of materials such as: aggregates, sand, gravel and similar. Electrostatically painted and they are supplied with two collecting pans.
Technical Specifications :
| Product Code | Product Name | Aperture (mm) | Number of Slots | Dimensions (cm) | Weight (kg) |
|---|---|---|---|---|---|
| NRB-3001 | Riffle Box | 7 | 12 | 13x18x18 | 2 |
| NRB-3002 | Riffle Box | 10 | 12 | 15x20x25 | 4,5 |
| NRB-3003 | Riffle Box | 13 | 12 | 20x25x35 | 6 |
| NRB-3004 | Riffle Box | 15 | 12 | 20x29x35 | 6,5 |
| NRB-3005 | Riffle Box | 19 | 10 | 22x31x40 | 11 |
| NRB-3006 | Riffle Box | 20 | 10 | 23x32x42 | 11 |
| NRB-3007 | Riffle Box | 25 | 10 | 25x35x42 | 12 |
| NRB-3008 | Riffle Box | 30 | 10 | 23x42x45 | 15 |
| NRB-3009 | Riffle Box | 38 | 8 | 32x43x58 | 16 |
| NRB-3010 | Riffle Box | 45 | 8 | 32x45x59 | 20 |
| NRB-3011 | Riffle Box | 50 | 8 | 32x50x60 | 27 |
| NRB-3012 | Riffle Box | 64 | 8 | 36x60x60 | 32 |
| NRB-3013 | Riffle Box | 75 | 8 | 37x70x60 | 35 |
